Nobody knows…
20
8 Likes
Noise
… 20 characters …
6 Likes
The Oval is mostly noise.
It opens the VCA and determines the Envelope with “Torque Gestures” on the 2 big NOBS.
Really hard to explain that one.
The Bistab is a touch instrument - it is tuned in e12, and kinda sounds like a harmonica - each square pad is a note - it is polyphonic as well
Also solar - lol panel is on the bottom side along with the speaker
The middle traces are bend points to bend the squares
8 Likes
I looked the bistab up on youtube.
Both are very cool devices, the knobs on the ciat lonbarde are very nice
Have a lot of fun with it
3 Likes

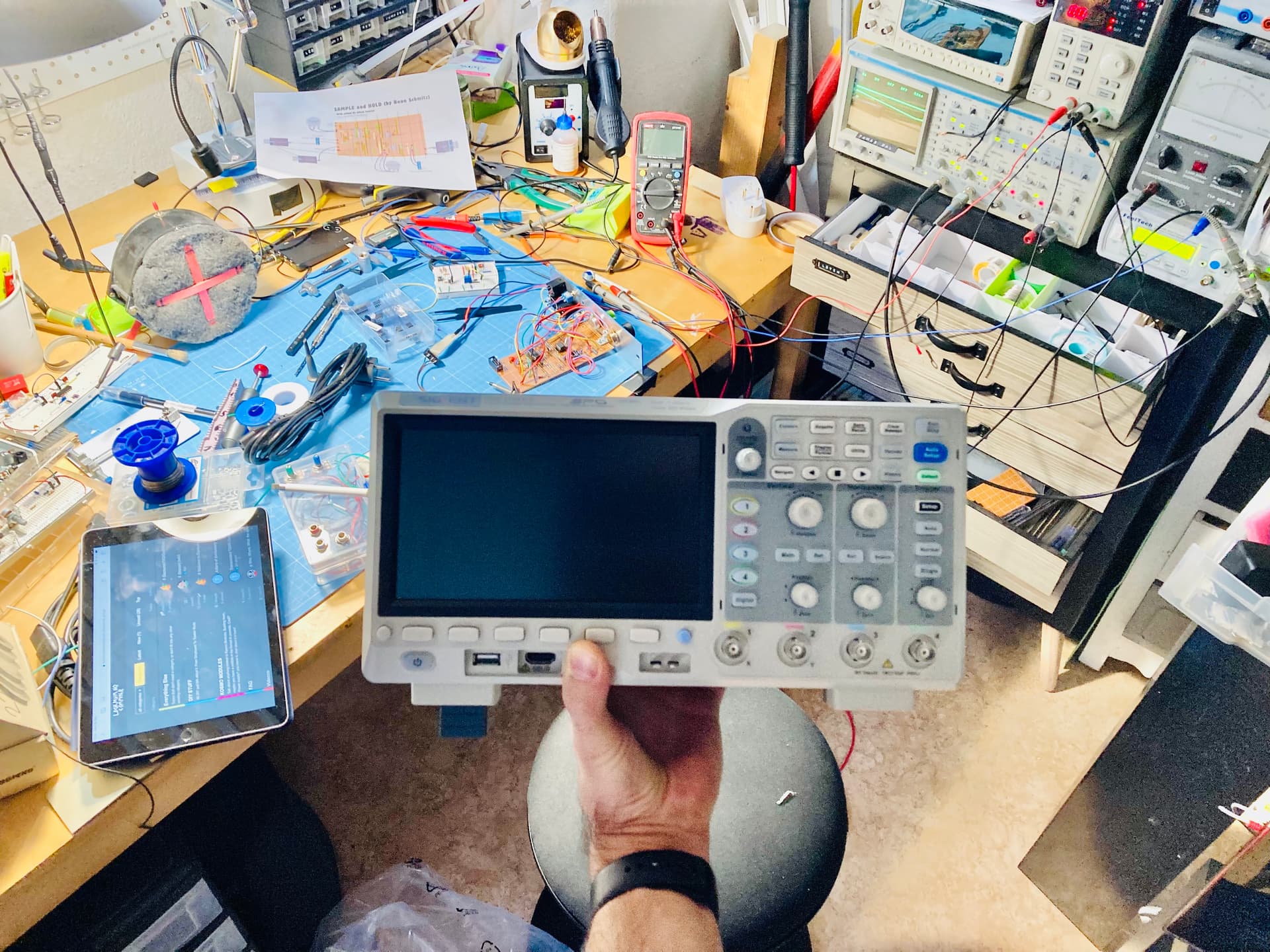

Finally bought a new scope, which now replaces my good old Gould DSO 1604.
Accidentally started a self calibration which takes like 10minuten and needs to be repeated anyways since it’s still cold
7 Likes
I like it when someone posts a workbench that’s almost as messy as mine
9 Likes
Damnit, it seems like all the cleaning up was not worth it. You think it’s messy?
Haha, yeah, absolutely
5 Likes
A clean workbench to me is more unsightly.
5 Likes
Hawkeye’s bench is somewhat neater.
4 Likes
Can i find the schem somewhere plz ?
3 Likes
Are these Kosmo format?
1 Like
Yisssss, the little ones are only 2.5cm wide, which you don’t normally see, but my box is out of space…
Having made 10, 5, and 2.5 sized modules now, I think 5 is the best.
2 Likes
These look awesome! are you selling any of these?
1 Like

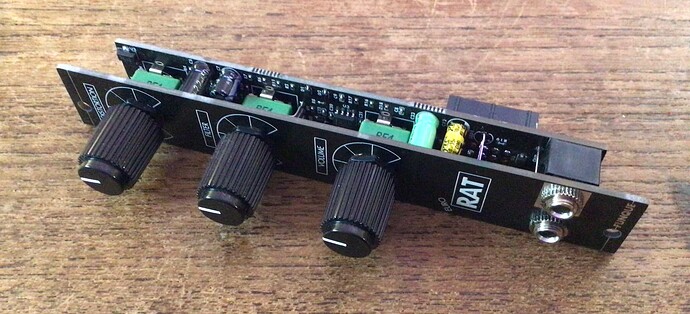

I used the CGS pedal circuit to lower and boost levels and put the Rat circuit in the middle powered by it’s own 9v regulator.
5 Likes
Let me test them first and then I’ll make the extras available for sale/trade!
3 Likes
He’s cheating. That’s just his portable setup
3 Likes
I see 2.5 cm all the time if I look at my synth… Prototyping DIY Expression Pedal interface for Kosmo - #25 by analogoutput, My build progress - #1150 by analogoutput, My build progress - #2378 by analogoutput
I’d like to think so too, but I keep finding myself designing 7.5 cm panels, which to some people aren’t even legal Kosmo. But I just think there are many cases where 5 cm is too tight a squeeze and 10 cm is oversized. Analog Output Audio Mixer, AO DC Mixer module.
5 Likes
