Cool! I’ve been meaning to try out that sub oscillator design, but I’ve nearly finished my first case and don’t know where it would live
2 Likes
Is there a stripboard layout for the AD / AR or is it the one from Sam?
2 Likes
Sam has made an adar stripboard layout. I built it with a big button trigger, works well enough.
1 Like
Oh, its a tiny tiny Circuit on Stripboard it takes only 15x11 Holes !
2 Likes
I need something when i push a button on the beatstep the tone should stay a bit, with sams Layout i´ve only got high tones ?! Maybe I made something wrong
1 Like
Yeah! that makes it even worse that I don’t have any room for it haha. It’s more the front panel space. Oh well, guess I’ll just have to start the next case
3 Likes
I think that’s the only way
2 Likes
Nevermind. I answered my own question. I had to think outside of the pot box because in my mind the knobs must always go to the left of the first leg. (see image) (yes, I have some self-diagnosed OCD about things being just so…
) Carry on with your bad ass creation!
4 Likes

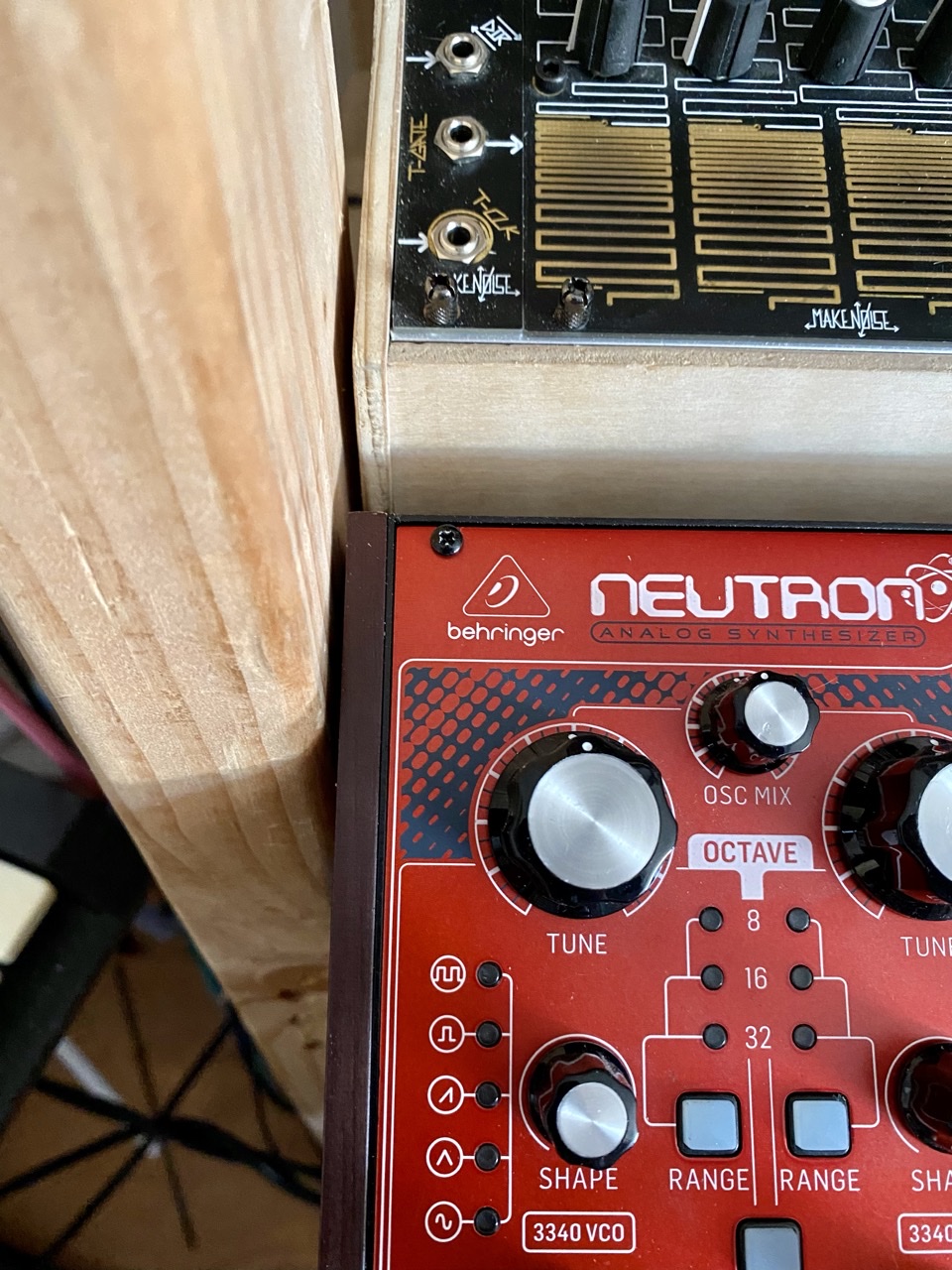

I realized that the combined width of my Neutron and Model D is exactly 150 HP—also the exact width of the new case I built. Incidentally, their side panels are within a hair of the width of the wood I used for my case. Obviously, the only logical thing to do was lopping the head off an M3 screw and combining them to form a new bottom row:
6 Likes
What you describe is an envelope. The AD/AR would work, the components are easily available.
Here is the stripboard layout sam made.
Send the gate out of the beatstep to the gate in jack, and connect the envelope out to what you want to control with the envelope (volume, pitch, or even cutoff frequencies on a filter!)
Here is the link to the video sam talks about it:
5 Likes
Some blanks (and other goodies) arrived today via @d42kn355. I also wrapped up the fart box build.
8 Likes
yes like said @Caustic, it’s a Sam’s stripboard
just add cap and switch for Long/Short select
2 Likes
Nice! Fuzz War is such a sick fuzz
2 Likes
Yeah i really like it. It sounds much less compressed than the usual big muff style circuit. However i’m not even sure which version i actually built. It seems there are several different ones with 4 or 7 transistors, 2 or 3 knobs and so on …
3 Likes
Ah no way, I’ve only ever seen the 3 knob version. Maybe some people leave off the volume control? Do you have the schem/layout for one you built anywhere? I’d like to give it a go some time
2 Likes
It’s this one
From here:
http://guitar-fx-layouts.42897.x6.nabble.com/Death-By-Audio-Fuzz-War-td2760.html
5 Likes
It says v1 but somewhere else i found a 7 transistor layout from 2011 which also claimed v1:D
1 Like
Oh and i used 1n60 diodes
1 Like
