Progress!
The cheap piezo contact mics I ordered off ebay are currently enjoying their stay in 上海市 so may take a while before I can finish this one according to plan.
(well, I guess I could source something locally)
6 Likes
Progress, cont’d.
Located a local supplier of cheap piezo contact mics, so with a little luck these fellows will make noise in a few days from now.
I also just realized that the polypanel base unit is 45 mm, or 1.012U. Hmm
8 Likes
Friend of mine have lapotops service and gave me several top panels that instead will be scrap - so going green again : ) Firts I took plastic one, material is stiff enough and much easier to work with than steel form old PCs cases I used before.
Divider by Niklas, recommended by our friend Dude : ) http://familjenronnberg.se/~niklas/diy/eurorack/divider/
First time I soldered using only scheme, without brief view of breadboard/prototype board. Works easier than I though, however I have to make proper power system for rack to test it - I hope that will be in several days. Then drawings/labels will come to.
8 Likes
@fredrik, why does everything you make have to look so good. You making my stuff look like garbage. Take a dive every once and a while for my ego why doncha.
Jk, love this.
@Piecho that s some good scrap sourcing!
5 Likes
It’s all photoshopped. In reality he does everything using a 50 year old Radio Shack 50-in-1 spring terminal electronics kit, and all his components actually are rocks.
7 Likes
Ok, I would usually not post something like this

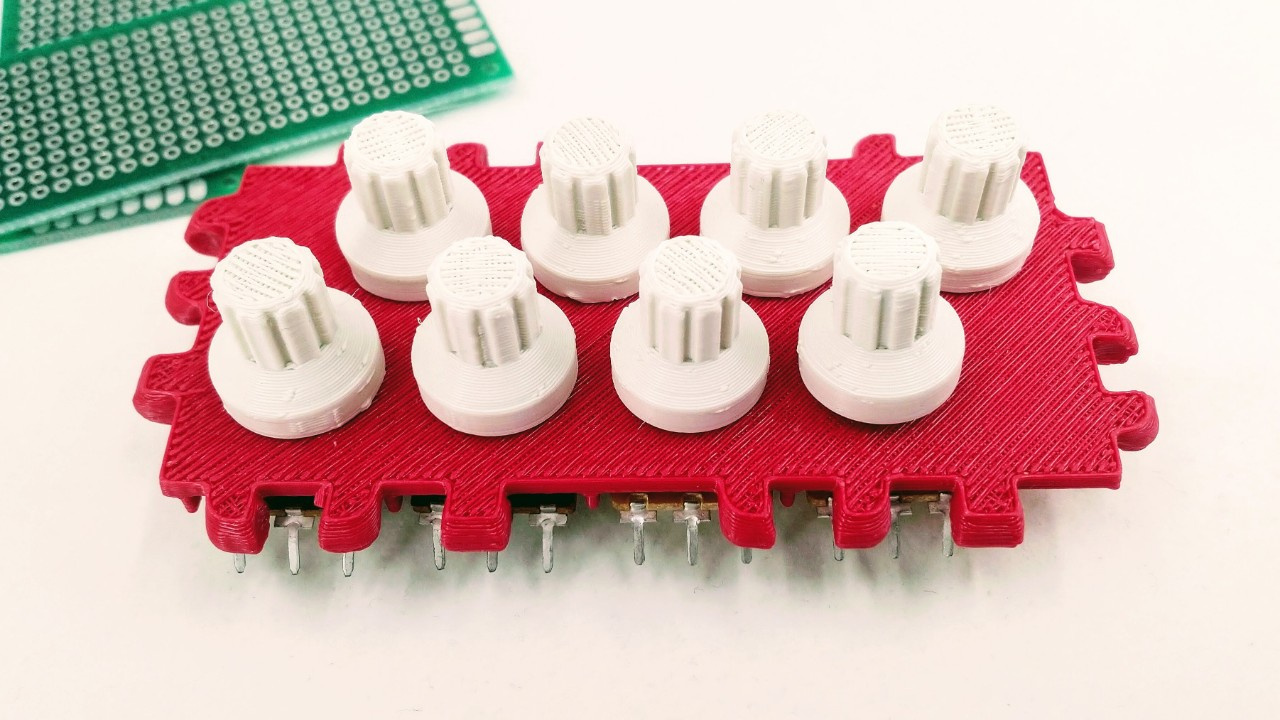

, but here’s my latest thing. Let’s just say the panel wasn’t really meant to look like this…
Still good enough for a test fit, though, so not entirely wasted
(and yes, I stumbled upon some 4017s when looking for more transistors, so thought I’d build something more straightforward.)
6 Likes
fredrik has taken “modular” to a whole nother level… lol
I can’t wait to see this monster when its all complete and put together.
Have any other examples of puzzle piece set ups?
I know the Mini GameboyMegaMachine was similar and I thought that was amazing!
4 Likes
fuck you for making me remember those kits exist lol . I loved that thing!
THEY STILL MAKE THEM?!
6 Likes
I liked the first one better.
3 Likes
OK, who can come up with the best synth module buildable with that?
4 Likes
5 Likes
Ooooooo I had some of the original ones!!! So much fun, really helped me understand different components and how they work more.
4 Likes
Too flimsy. For some reason, 0 mm thick elements don’t provide much structure.
4 Likes
I’ve got a switch out of a Tornado Jet that’s way cooler than this… Need to turn up some custom contacts for it before fitment. Sort of lost the switch too, which is normal for me.
3 Likes
How about an electronic noise maker? (page 51):
4 Likes
If I didn’t build that I probably did something like it.
Also, this was (identical to) my first DIY synth:
8 Likes
Photoshopped or done with mirrors I think.
3 Likes

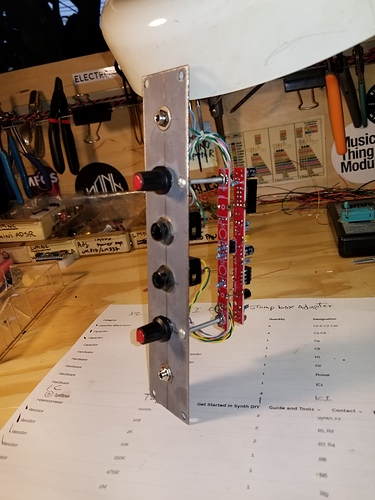

the AI 006 pedal interface reworked to use the pots I had and 1/4" jacks for the fx send/return. haven’t decided on finish yet just wanted to see if I could make it all work .
7 Likes
That looks great. I’ve been thinking of doing similar things with other euro stuff I find that’s a good deal on reverb.
2 Likes
