Mail Day Thread

Can you expand on these?? what are they all??

5 Likes

Parts for acronym synthesis I guess. :grin:

2 Likes

JMBLR is a Format Jumbler. Banana/3.5mm/1/4" convertor.
GRNDS is a Grounds module specifically for grounding banana based equipment to your power supply and rack and can be used as a Banana Mult (when not connected to Ground on the power supply)

The Noise generator x Sample and Hold is a module I posted about in another thread :slight_smile:

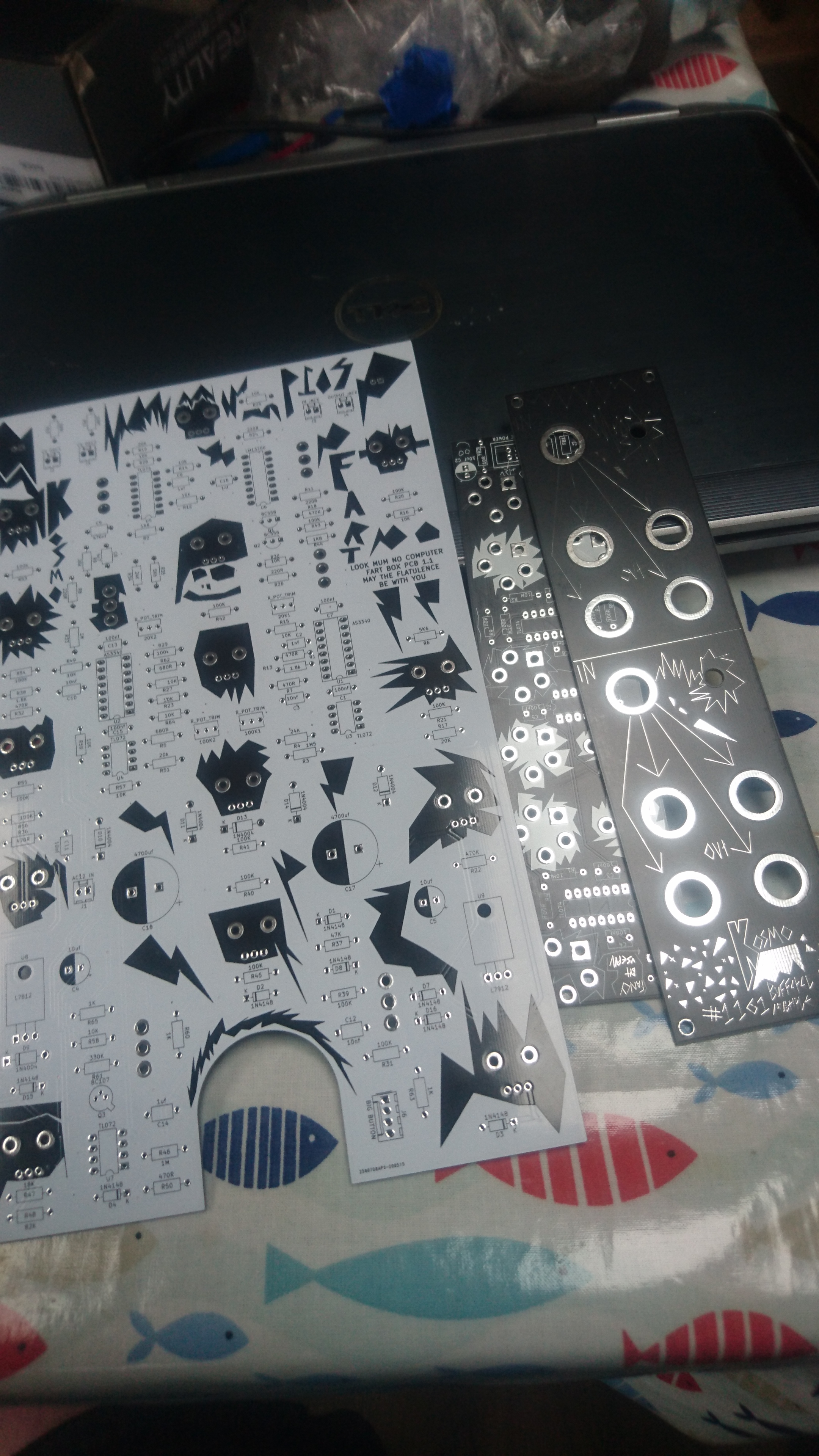

Lil Sidrassi is a weird Ciat-Lonbarde Paper Circuit that I converted into a PCB - it is 5 oscillators and it works in an interesting way :slight_smile:

Hopefully that’s what you meant :smiley:

4 Likes

The hookup wire and sockets arrived yesterday, the banana plugs arrived today.

This photograph shows the dispensing box with the seven reels of insulated 20awg wire, banana plugs and container, a disassembled banana plug alongside the provided screwdriver, and a set of four plugs arranged as a 1:4 passive multiple. Also a couple of banana jacks, one fully disassembled, and the container they came in.

Neve has just got back from a long walk here, but her ears are pricked up because she can hear someone in the kitchen preparing food.

5 Likes


pots , these values are just for stock at the moment . still waiting on the 20k, 100k .
hex nuts for jacks , the aluminum ones they send with jacks suck .
and IC’s for something not sure off hand ?

5 Likes

“On… The first day of July, the postman brought to me…”

SFA!!!

2 Likes

I lied

8 Likes

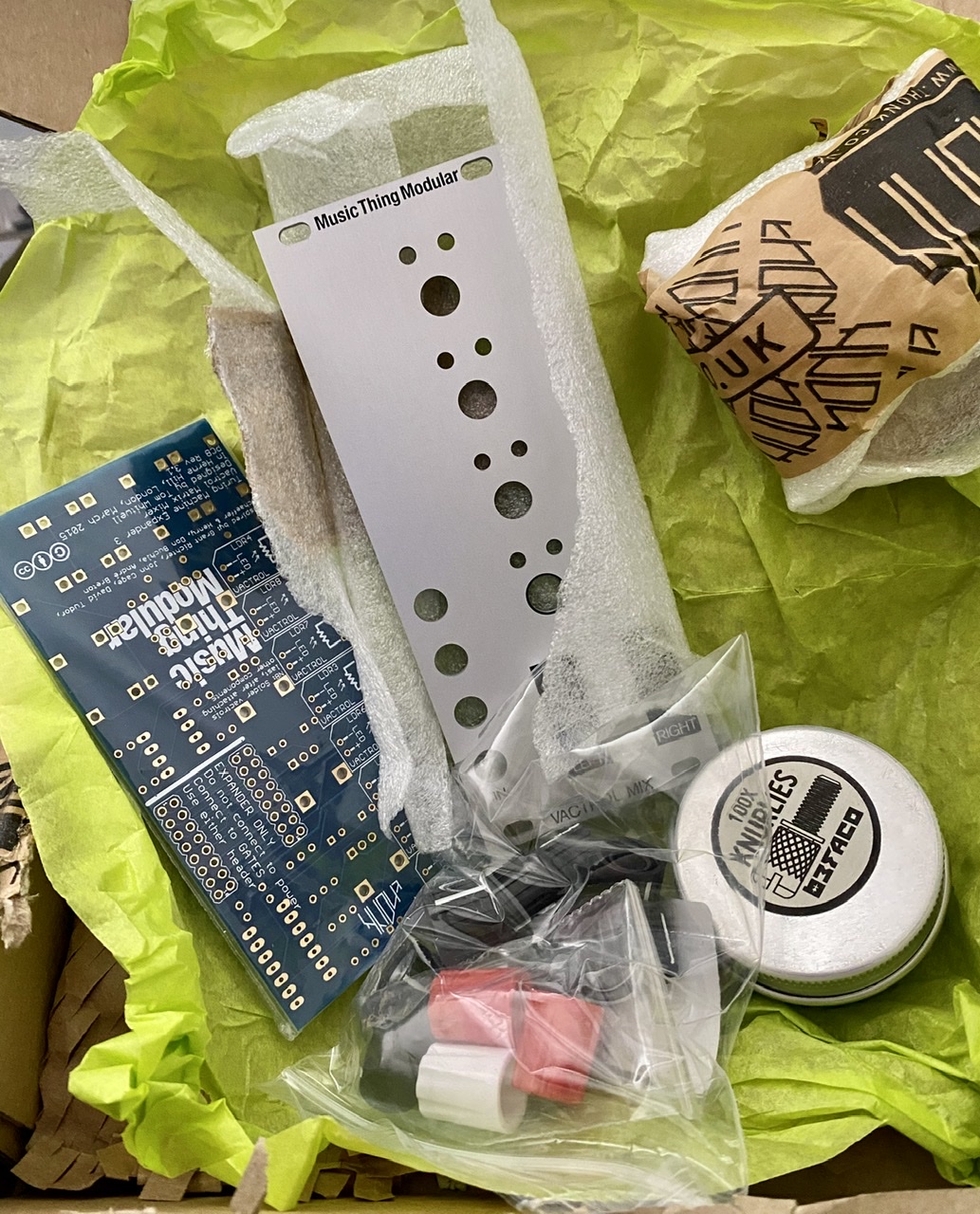

Knurlies, Vactrol Mix Turing Machine expander panel and PCB, and some knobs from Thonk!

5 Likes

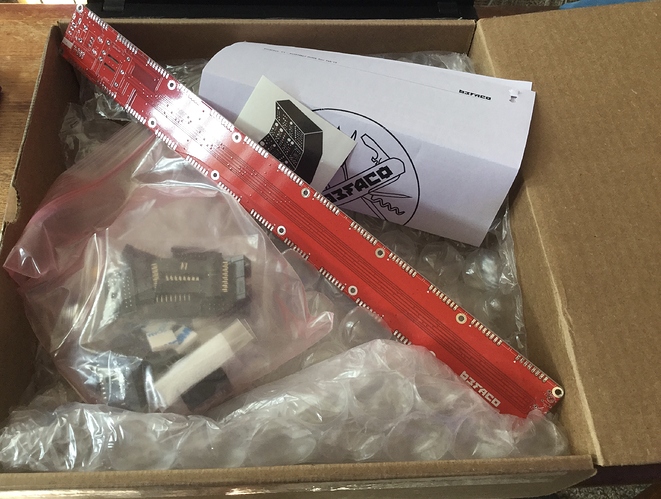

Befaco Excalibus Kit :smiley:

6 Likes

Now that’s a lot of HP!

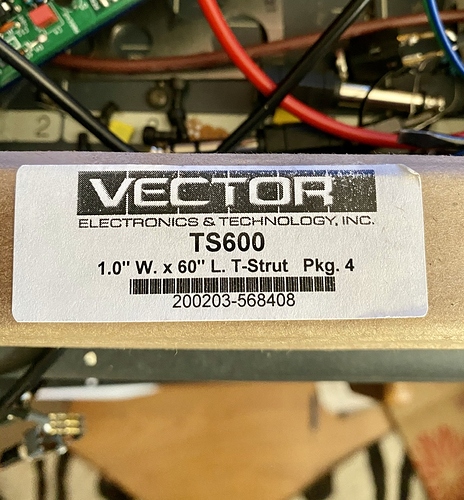

There’s a new 4*150 HP case in my future. Thanks to @analogoutput for making me hip to the Vector TS600 package from Amazon.

7 Likes

Cute little 1.44" 128x128 RGB display, for visual feedback on DIY projects.

7 Likes

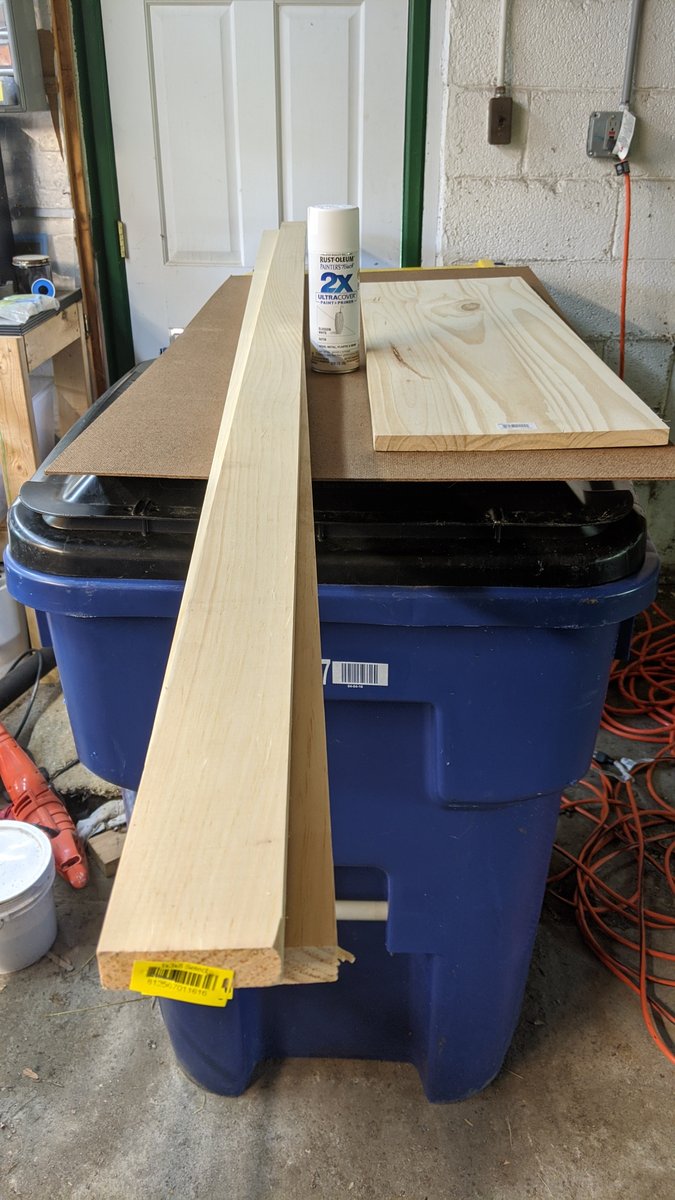

Not mail but I’ll put it here. Wood for the new case, and paint for a panel.

9 Likes

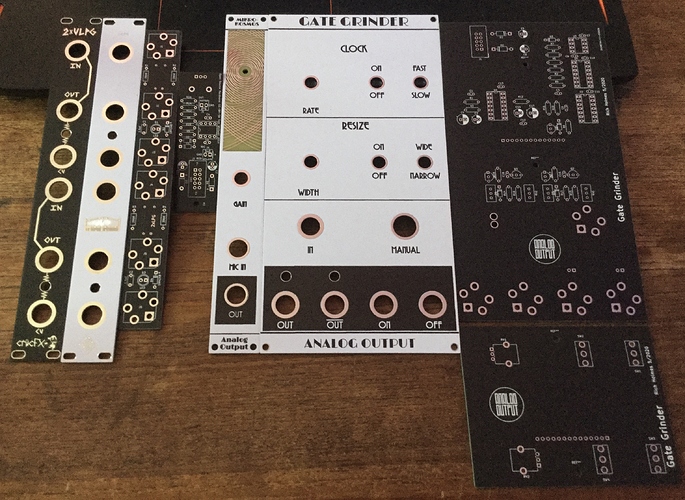

JLCPCB Order came in today!
Oddly enough, USPS delivered it?

@analogoutput ‘s MikroKosmos and Gate Grinder (I believe this is the revised board?)

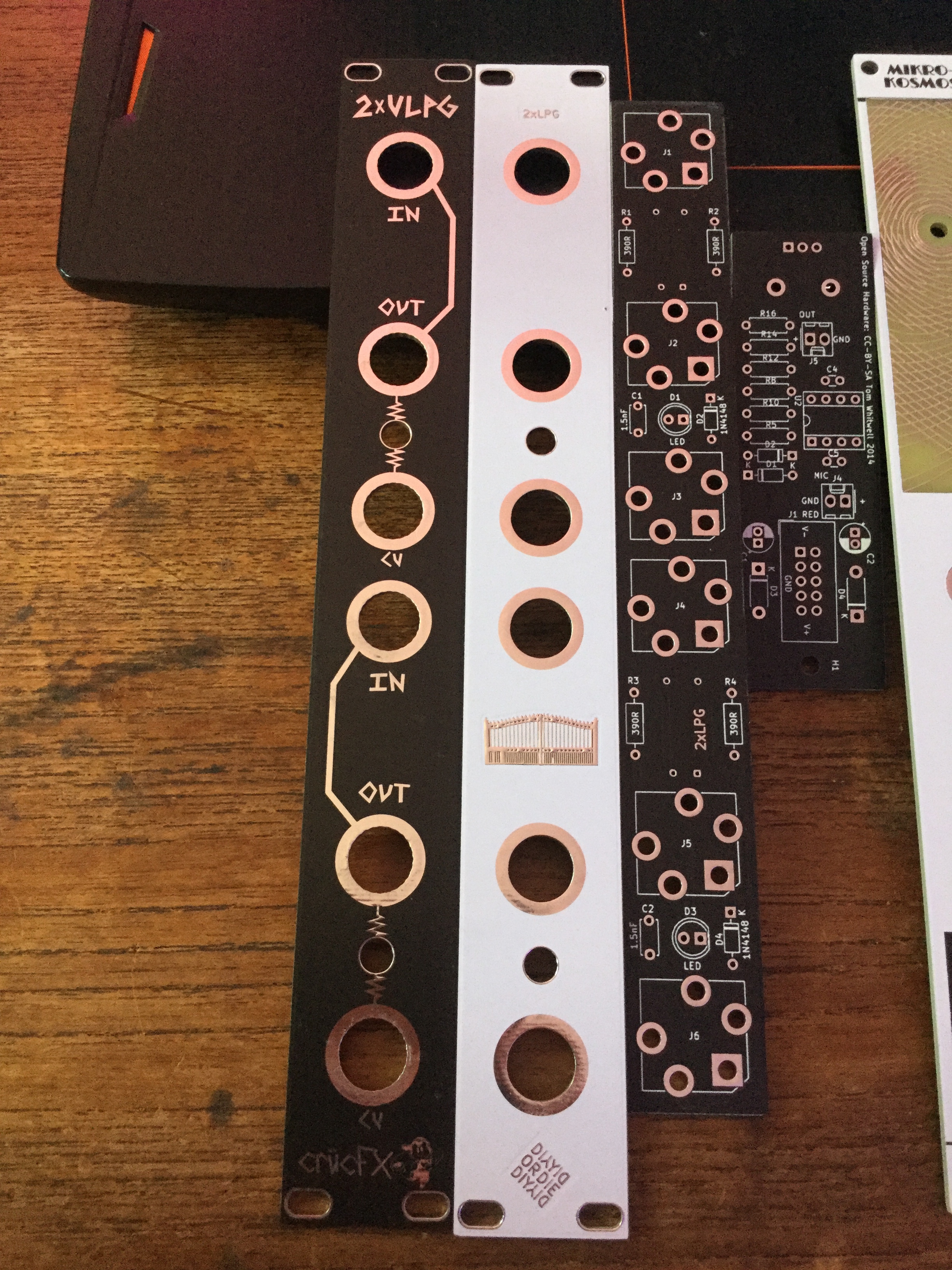

And my very own 2x Vactrol Low Pass Gates!

Had to add a “gate” on the reverse side. Lol.
(One panel is white, one is black… but shit… if anyone knows a plays that will do a different color on each side, please lmk. Lol)

9 Likes

After 35 days of waiting, I got these 6.35 mm jack stereo connectors.

I had only one (needed 3 more) when I was building the Pedal-O-Matic foot pedal module, so now I can finish it.

9 Likes

Josh,

Those are beautiful! How many Mikro Kosmos remain?

-Fumu / Esopus

3 Likes


yay buttons came today , now I can finish up the project .

8 Likes

Today I actually got mail!!

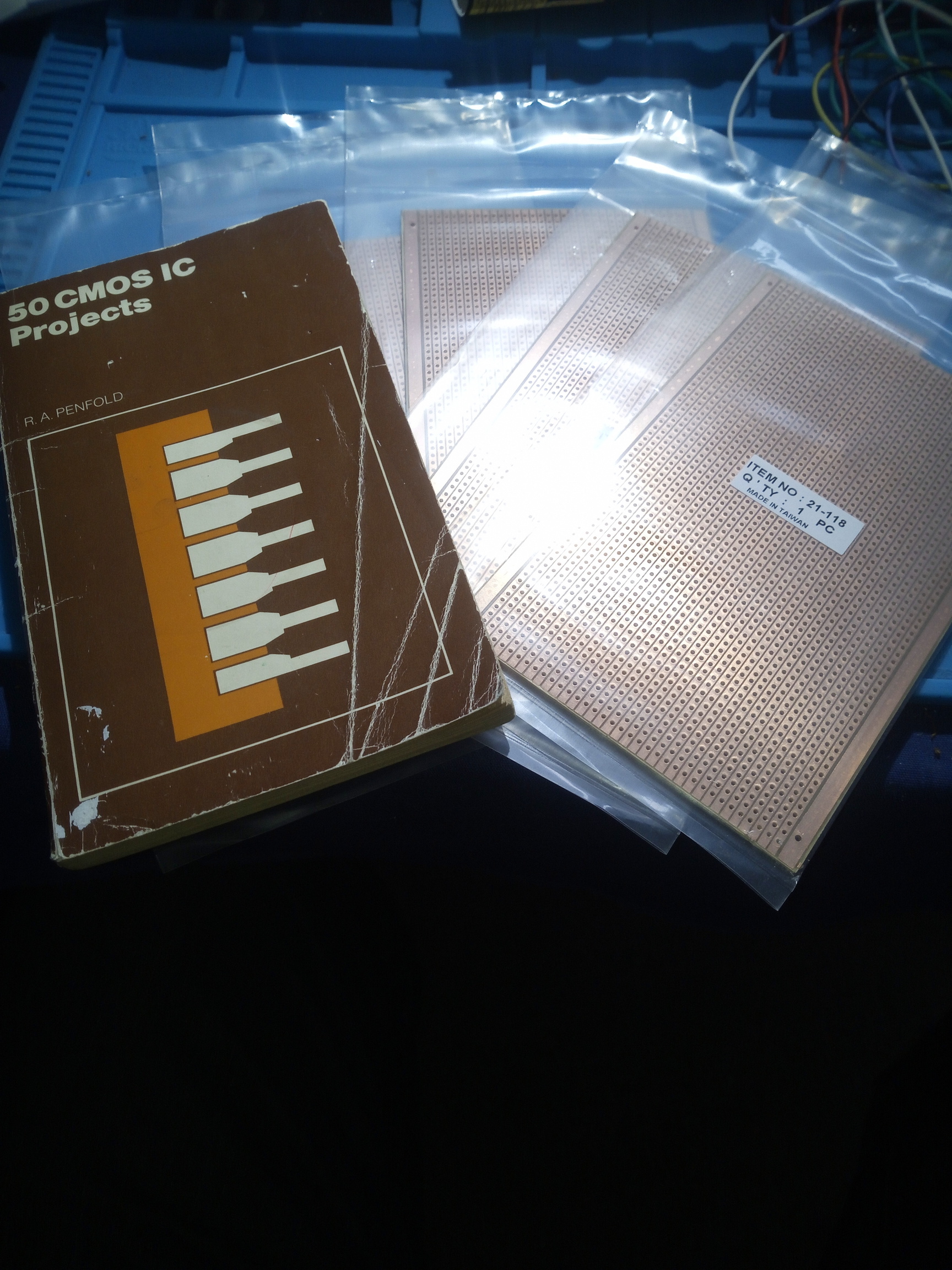

A second hand copy of a penfold classic and big-boy-many-hole stripboard! Hope to be fit enough to use it soon.

7 Likes

I’m having trouble reconciling the scale in this photo. Are those huge strip boards or is that a fairly small book?

3 Likes

There are 35 rows; assuming 0.1" hole spacing that’s 3.5" width plus the margins. It’s listed here as a mass market paperback, if so width would be 4.5", which seems fairly consistent with the picture.

7 Likes

And the google tells me 21-118 is 160×100mm with 2135 holes.

Searching for the book title brought me to an Amazon page for a book with the same title from another author that Amazon offered to sell me for ~$500.

5 Likes
