Thanks, the process is clear to me now. Just wondering where to get the spray glue.
3 Likes

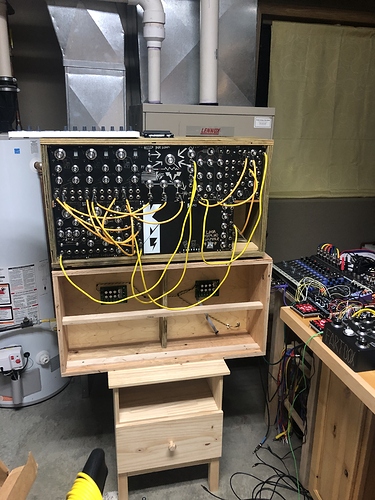

Power supply for the 2nd rack.
Almost finished apart from the power connector I ordered which hasnât arrived yet.
6 Likes
I think the only thing to consider is using the âmulti-feedâ tray on the printer rather than the main paper tray. Itâs designed to take in specialty papers - card stock or high gloss paper. I just used magazine paper I cut with an exacto knife and it fed through just fine.
3 Likes

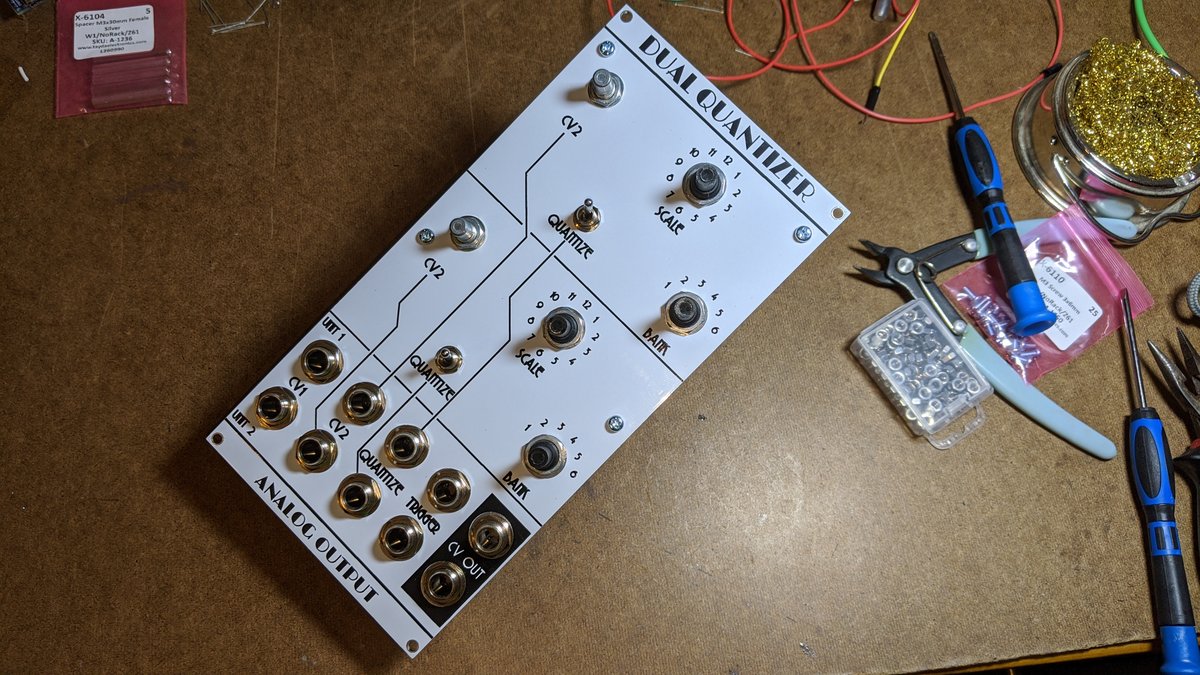

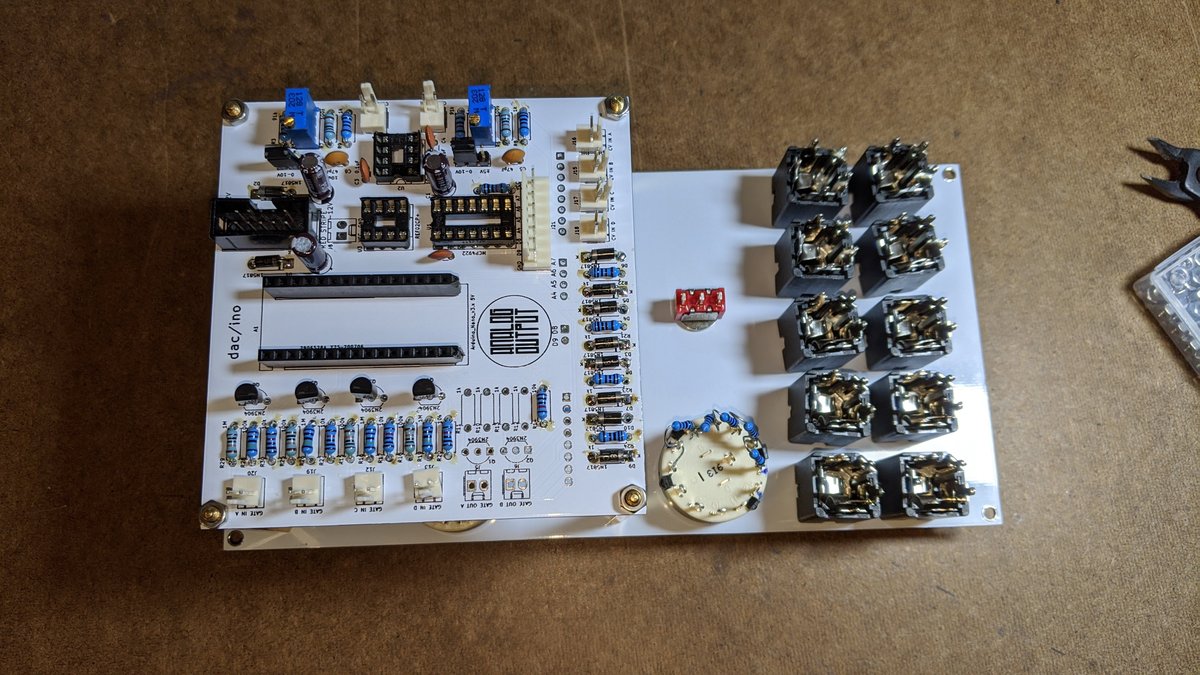

The circuit and therefore building it is not very complicated. You only need to be compentent at soldering. Oh, and know how to program an Arduino Nano. I will open a thread soon where I will show close up pictures of my implementation and a link to the software repository and the 3D panel file. You can then decide whether you want to follow my build or adapt the euro rack to Kosmo or other dimensions.
4 Likes
That sounds very good! I think I can solder. I also have some Arduinos and âblinkâ I can do
.
So if the code is there I should get it on the Arduino and be able to make small changes.
3 Likes
In fact itâs closer (almost identical) to the MFOS wall wart supply. The latter uses 3300 ”F caps and adds load resistors but I think itâs the same otherwise. The FC circuitâs a little different.
One caveat: The layout shown doesnât allow room to add a heat sink to the 7912. Of course thatâs easy to fix, just mount it an inch or so to the right. Heat sinks on both regulators are a good idea. (Donât let them touch each other.)
2 Likes
So, yeah, let me know when I can buy one
8 Likes
cool looks like you are getting somewhere
.
6 Likes
Same. And does it come in black?
6 Likes
I have still to go back to videos on Quantizers to understand what they are!
2 Likes
Basically a quantizer is frets for a synthesizer!
9 Likes

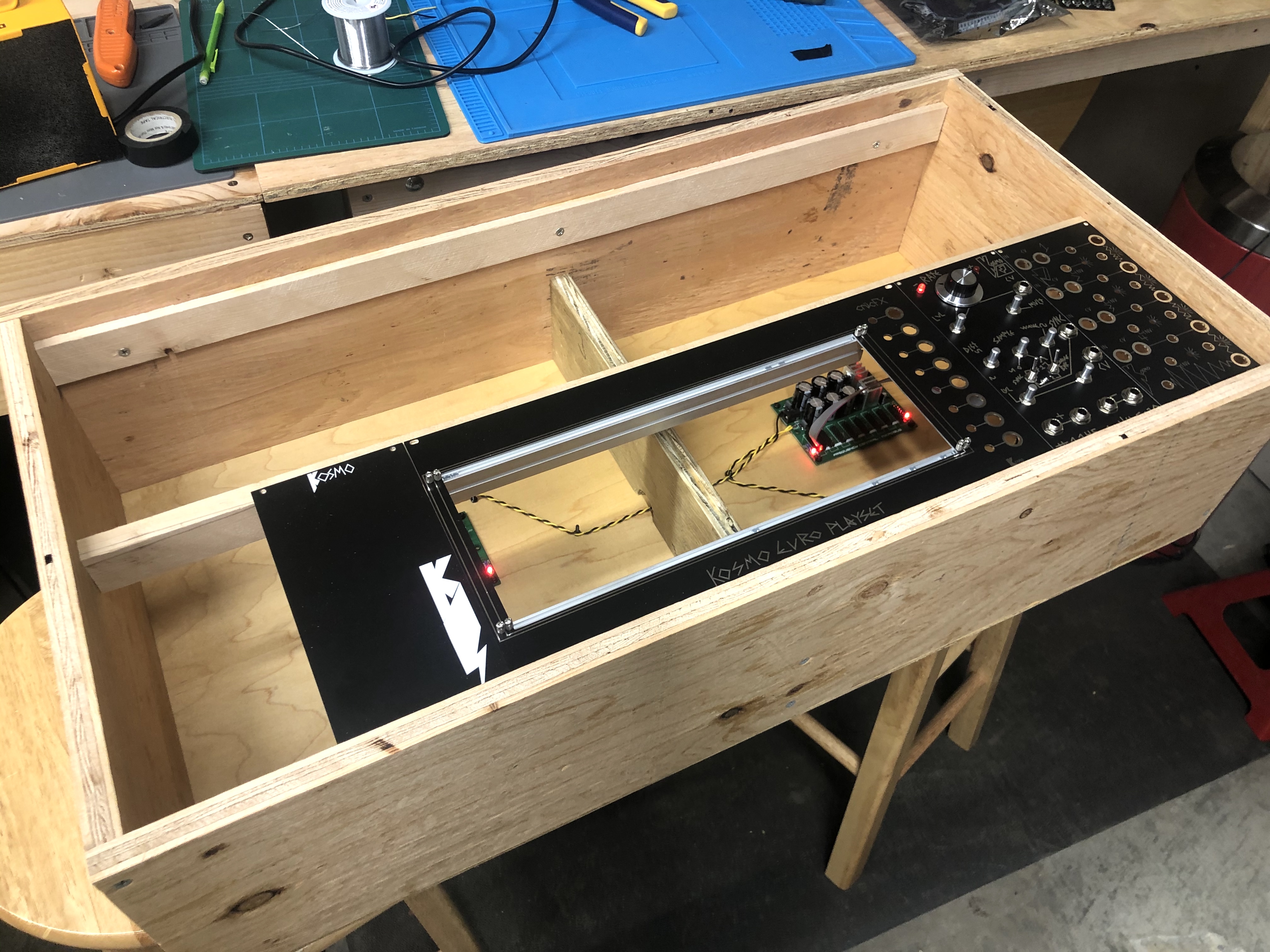

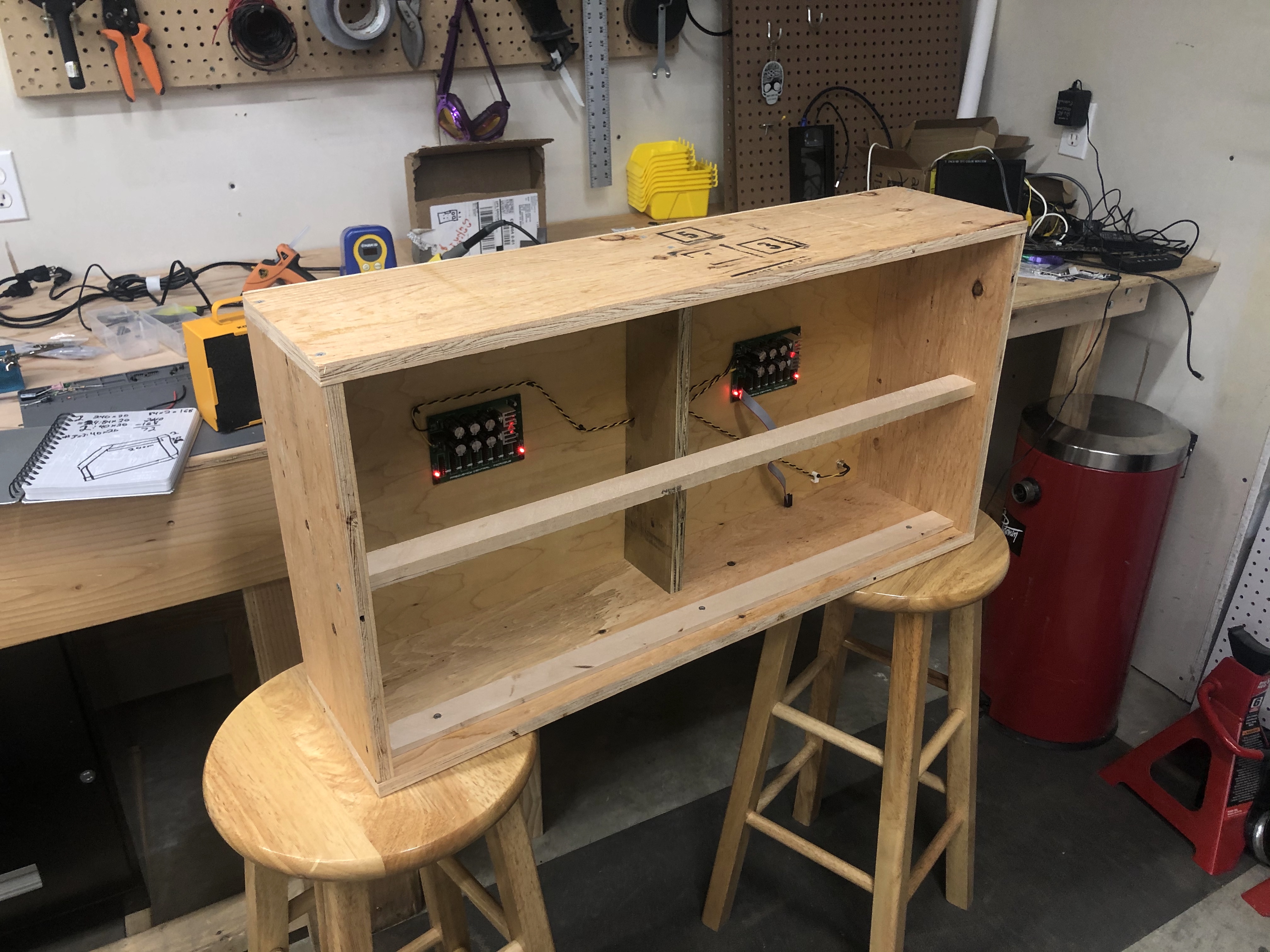

Got my second case built. This time the right width. Now I have a home for the Eurorack playset and a few other rad modules. Now I need to finish up some modules (some pink bags also came today) and put together several more cables.
12 Likes
Why pink? Is that a Tayda thing?
3 Likes
Looking really sturdy! Got some gigging planed?
1 Like
the pink plastic is antistatic and most likely cheaper than the silver bags.
5 Likes
Not in the near future for obvious reasons. That center post wasnât added to make it sturdier. The top and bottom pieces of wood were warped just enough that, without that center post, the center of the box was smaller than 40cm. Itâs just straightening the box.
2 Likes

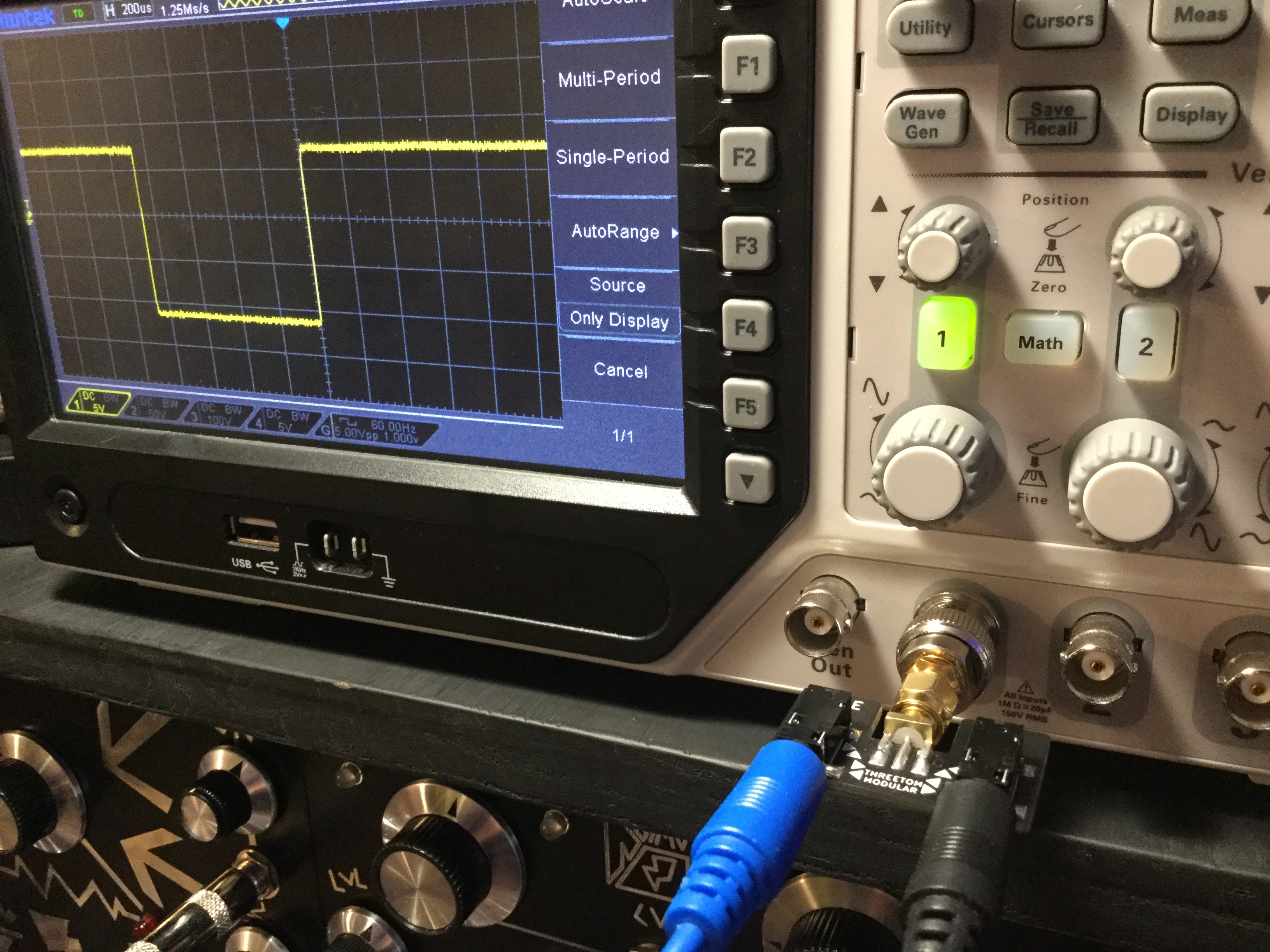

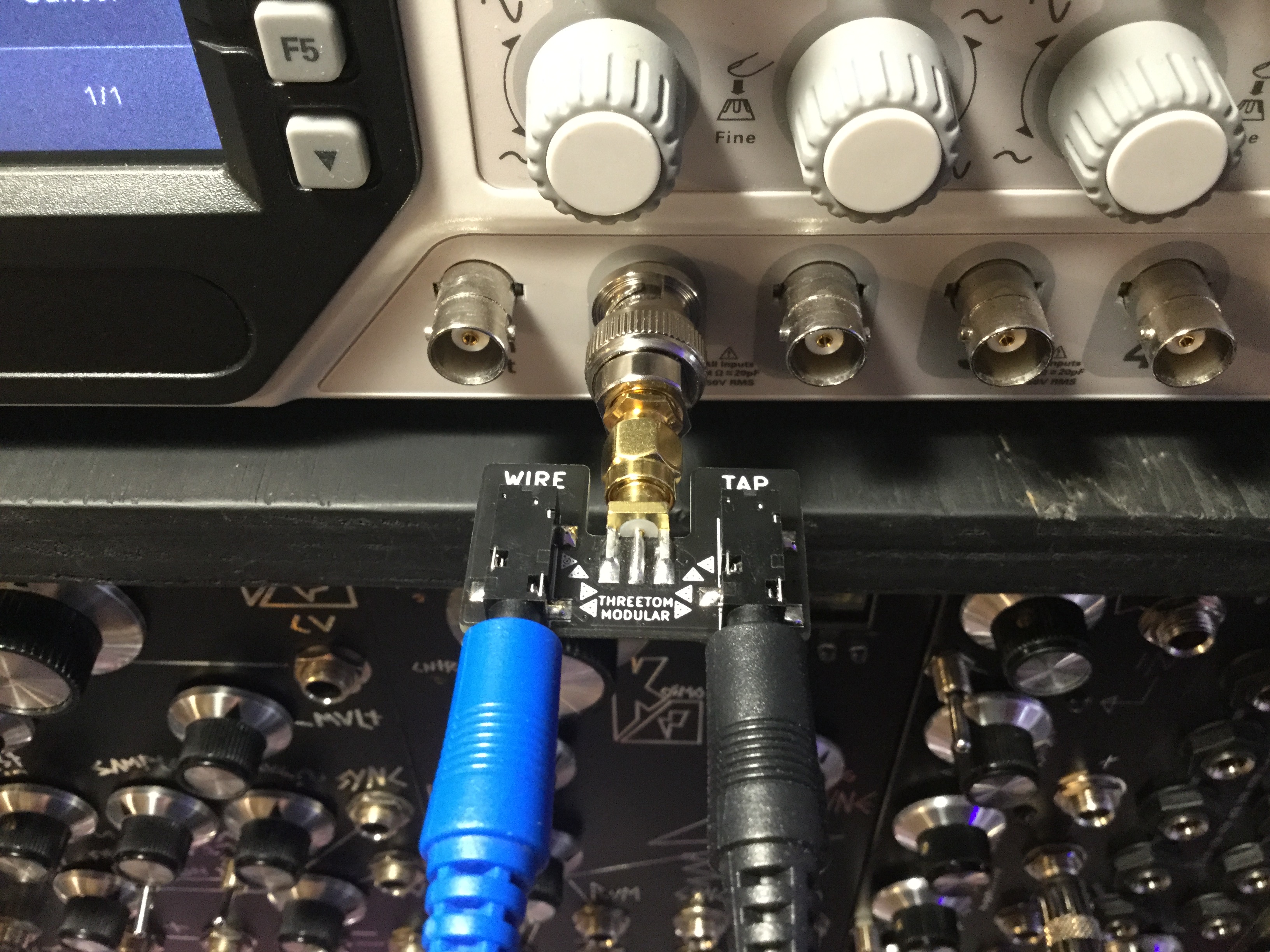

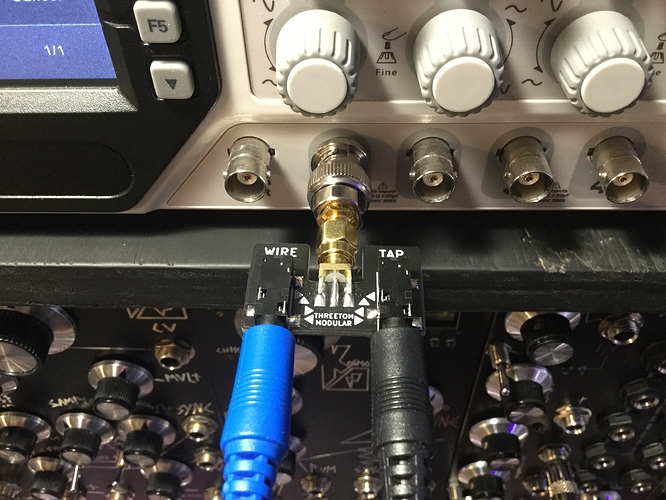

Finished a Wire Tap from @threetom
Lol, for some reason I thought there was only 1 Wire Tap with the board⊠lol hence the itty bitty order from MouserâŠ
8 Likes
So a mini patchboard for your scope. Good to have.
7 Likes
I put together a few modules today that Iâve been waiting for parts on (some of which I will continue to wait on parts for).

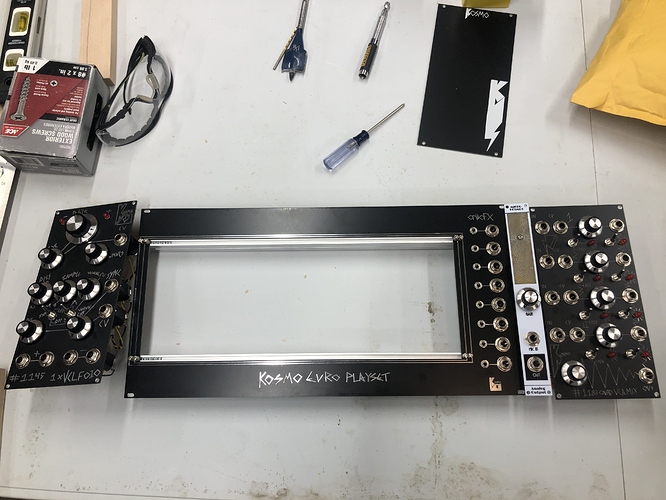

I finished up the Eurorack Playset (stoked). I put together most of the MikroKosmos (missing piezo, but close enough for now). I did almost all of a Quad VCA mixer until I realized I was missing a couple key ICs. I also started the VLPG - waiting on 1.5nf caps and it should be good to go. Mostly a productive evening.
6 Likes
