That would be 22.49 / (12 - 1) = 2.04 mm
So I guess it will be 2 mm.
1 Like
I’ve been working on several boards this weekend. The simplest one is a passive multiple. It can be used in several ways. All jacks are normalized but the ones in the left column can break the chain: 1 in x 11 out, 2 in x 5 out, 4 in x 2 out. Here is a pic:
4 Likes

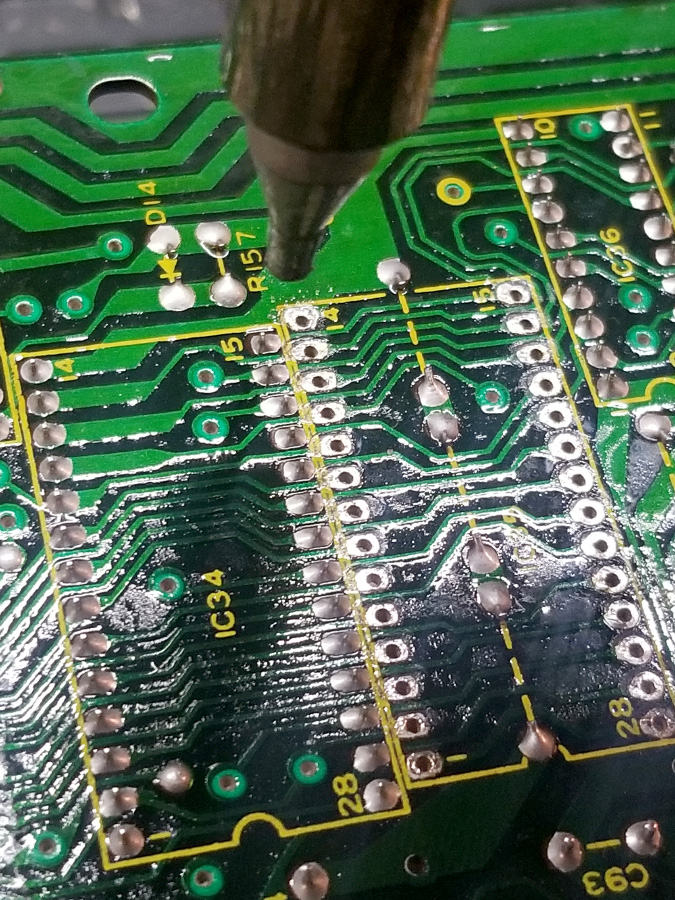

After getting some practice in with my new desoldering pump, I nervously took the plunge on the ROM expansion for my TR707 from https://hkadesign.org.uk/. Happy to say it went well, and I now have 8 classic sounds banks to choose from.
thought this looked cool
10 Likes
Way cool! Which sucker is that? @Riggidyboo
4 Likes
@CTorp pretty excited. Bought the desoldering station for myself as a bday present. https://www.amazon.com/gp/product/B07542D82F/ref=ppx_yo_dt_b_asin_title_o07_s00?ie=UTF8&psc=1
2 Likes
Man, I think I need one. Looks like the ic could have fallen out when you got the last pad
2 Likes
I didn’t even have to wiggle it. I rarely make mistakes when building my boards, but if i did, desoldering the other ways proved to be a nightmare, and sometimes I ended up damaging the pads or traces.
3 Likes
Hey,
I can show a few small pictures of a build progress. My brother-in-law sent me pictures of how great his super fancy music room is blah blah blurp. With mobile phone holder here and tablet holder there and of course laptop stand …
And that pissed me off so badly because I’ve always wanted to buy a laptop stand because I have very little space. What you see in the pictures is my living room, my laptop is also my only “TV”, there I eat, there I solder and there I make music, my whole life is practically happening there
And then I just checked what wood I still had and started. At first it should be just this:
But then I still had an idea and some sawed off boards and it became this structure.
and I have to say I should have built it 2 months earlier, that makes everything sooo much easier
15 Likes
9 Likes
I need something like this in my life too!
2 Likes
I just finished a box with 10 attenuators, to put it at the entrance of my mixing table
really very compressed in it
(not all the same jack on this side it’s recovery)
10 Likes
Ahhhh…I was just about to build this! Been looking at this on the Thonk site for a while now.
3 Likes
@d42kn355 Im a bit late to the ‘it looks like this’ party but…
7 Likes
That’s just Popomatic!
1 Like
I’m pretty sure I’ve made every mistake at least once. Ruined the stripboard. Ruined the panel. Maybe frying the chips is next
