V3397 2VCOs, 1 VCF, 4VCAs on one chip

1

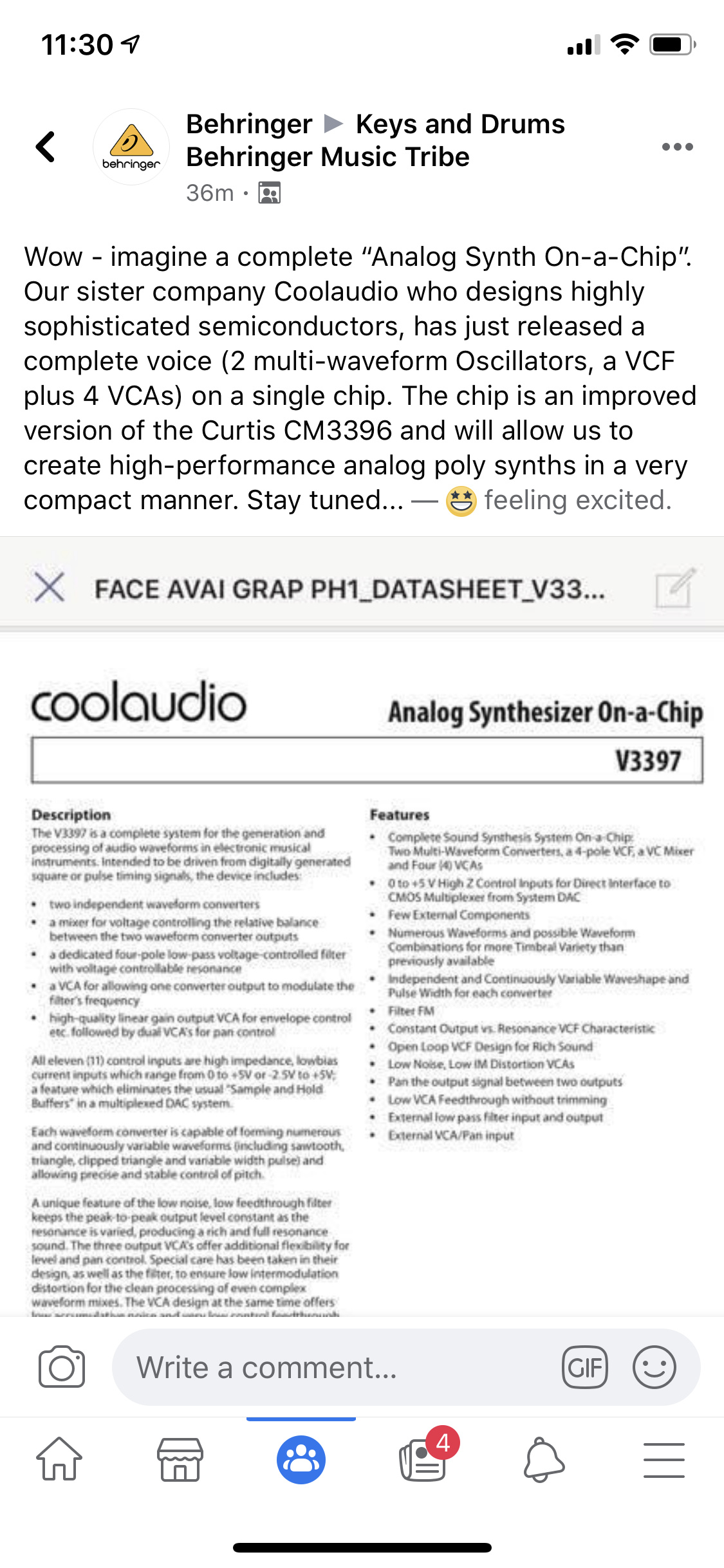

All analog:

image1125×2436 509 KB

6 Likes
2

There’s also the 3394 which has one VCO (with suboscillator), VCF and five VCAs:

(and possibly more, iiuc all these are near-clones of CEM chips)

8 Likes
3

Someone should take all the schemas that they are offering free from ericasynths for diy, and put them to pinterest or here as pictures!?
