Dear all,
I’d like to make my first drone synt, following the principle of the simple oscillator (by LMNC).

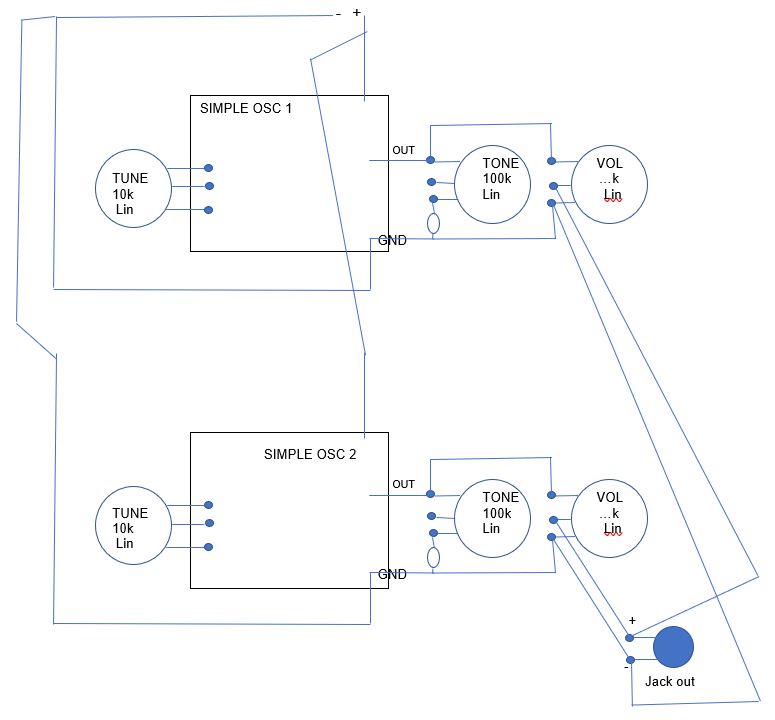

The synth will have multiple oscillators, and each one will have a pitch know, a tone know and a volume knob. I tried to draw out a scheme for two oscilators.
Two questions: Will it work with this scheme?
And what potmeters should I have for the volume knobs?
Thanks!

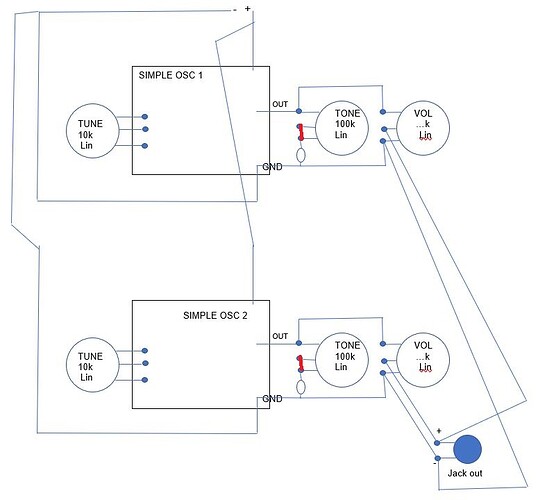

For the tone pot, the cap need to go to the middle pin too
for volume pot between 10K and 100K must work
indeed, I forgot that one.
Thanks for your help!
As I read somewhere, I would need some resistors to add to the scheme in order to have those volume knobs there. Any suggestions on that?
Can I have linear potmeters for the volume knobs?
Thanks!
@jdm add a 100K between each volume pot and the mix point .
here it’s with a 47K but look at this passive mixer
and for the volume pot, some audio will be better but linear work
