In the mean time, today I did the hardware fit out on an 8 Step Arduino Sequencer… One bit puzzles me though. And that’s that there is no Permanent ground show for the Jacks?
Is that correct, that they just ground on each arduino Digi Pin?
Cheers
Rob
1 Like

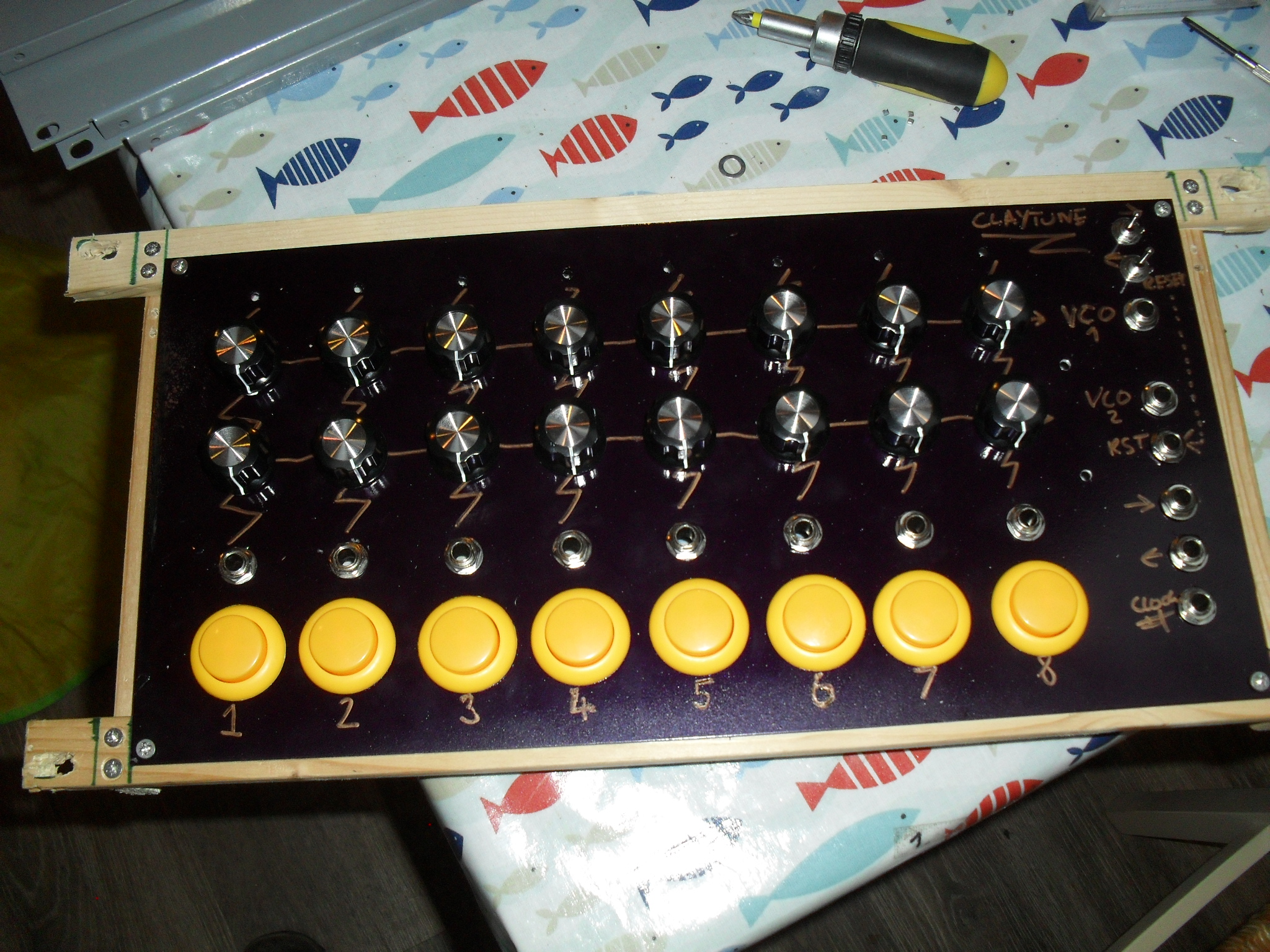

1st Attempt at this build…
Unfortunatly the basecoat must have still been a little wet and the clear coat cause a run…
http://www.tobin-stage.co.uk/wp-content/uploads/2020/01/SDC14738-1.jpg
1 Like
For the colour blind, it’s not black. It’s dark purple…
And one side of the button should also be +5V??
I may have missed both point in the video…
Are you asking where you ground the sockets? What is your power situation? Do you have a ground plane or ground bus?
Hi Caustic…
The diagram
Does not show the grounds being tied to ground except through the 10K resistore on the switched side of the push button. If that’s how it is then fine… Or does it need connecting to VDD (easy enough if need be on the stripboard)
On the Supply side of the button, there is no indication that this needs connected to VCC. So my assumption is it does and just to connect that also on the strip board.
Cheers
Rob
DOH…
After scanning the video, looking at the build page over and over…
Then just below the image…
“”“REMEMBER TO SOLDER THE RED WIRES TO THE ARDUINOS 5V PIN. AND THE GREEN WIRES TO THE GROUND PINS! it wont work otherwise. sorry if that is not clear in the images above.”""
