Saving this for later. I wonder if the schematic is floating around somewhere.
4 Likes
Are you planning to use this as a CV generator of sorts?
1 Like

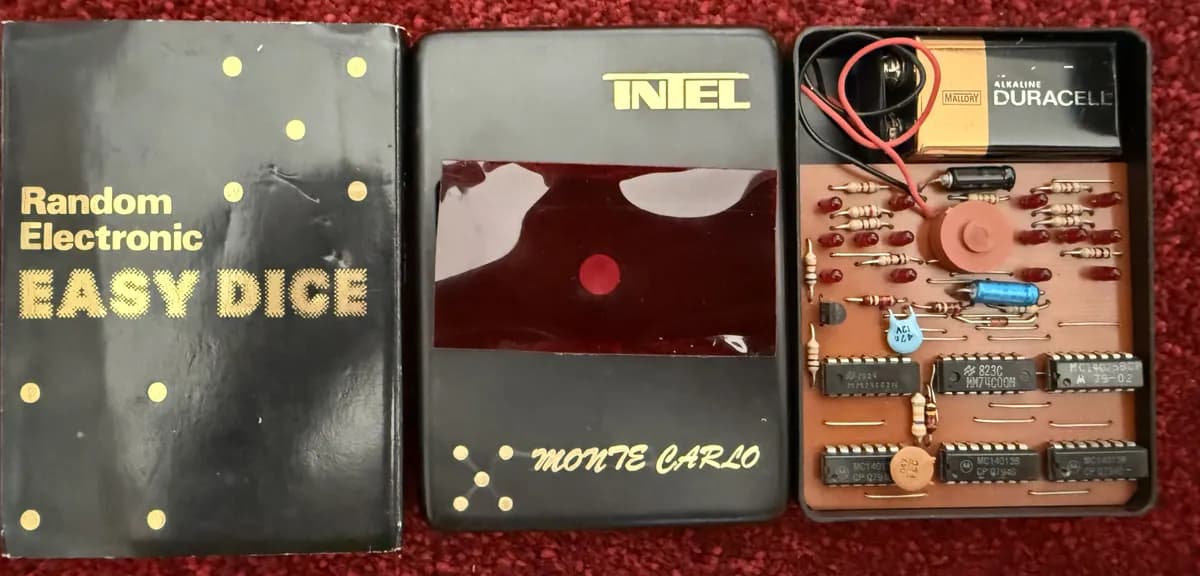

I dont have my hands on it, sadly! I just happened to run across it on board game geek. One of the designers runs a museum and I imagine that is where this is headed.
There is a well-known circuit for an electronic die using a 555 and a CD4017 that has been featured in many beginner electronics books (with kits available in AE, etc). I can’t get my head around how that circuit manages to get a random output though (or maybe it doesn’t). The Intel one looks more sophisticated though, so maybe this one is trully random.
1 Like
